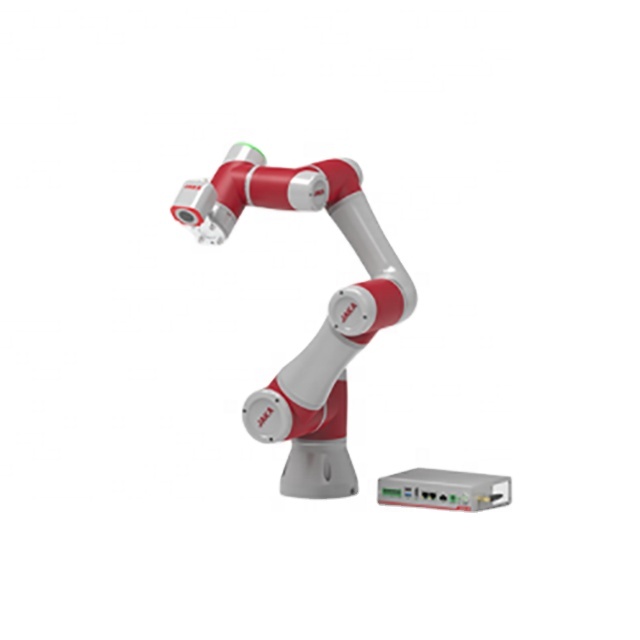

cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place

Xiangjing (Shanghai) M&E Technology Co., Ltd
Contact Now

cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place

Place of Origin : Shanghai, China

Brand Name : jaka

Application : picking and packing robot arm

Condition : New

Warranty : 1 year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops

Weight (KG) : 70

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Argentina

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Bearing, Gearbox

Product Name : JAKA Ai 12 cobot

Number of axis : 6 axis

Max payload : 12 kg

Maximum reach : 1327 mm

Pose repeatability(ISO 9283) : ±0.03mm

Temperature range : 0-50℃

Protection rating : IP54

Certificate : CR, CE, 15066

Teach pendant : MT(PAD/Mobile)APP

Packaging Details : One cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place packing with fumigation wooden frame, WG: 41 KG
Controller and other parts packing with brown box, WG: 25 KG
Total WG:66 KG(>VG)

Port : Shanghai

Supply Ability : 5 Set/Sets per Month

Price : Negotiable

Contact Now

cobot 6 axis  JAKA  Ai 12  Chinese low cost robot arm  for industrial  pick and place



Main Specifications
Maximum reach:  1327 mm
Maximum payload: 12 kg
Pose repeatability (ISO 9283):± 0.03 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc

Power consumption:500W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen

Product Description
Product Name   cobot 6 axis  JAKA  Ai 12  Chinese low cost robot arm  for industrial  pick and place
Application cobot 6 axis  JAKA  Ai 12  Chinese low cost robot arm  for industrial  pick and place
Model JAKA  Ai   12 cobot
Robot Arm
Maximum reach 1327mm
Maximum payload 12 kg
Pose repeatability (ISO 9283) ± 0.03mm
Number of axes 6
Certificate CR, CE, 15066
Temperature range 0-50℃
Weight 41 kg
Protection rating IP54
Standard CE, TUV,KSc
Power consumption 500W
Material Aluminum alloy
Ambient temperature 0-50°C
Environment humidity 20-85%(No condensation)
Power supply DC 48V
Protocol CAN bus
A1 ±270°
A2 -85°,+265°
A3 ±175°
A4 -85°,+265°
A5 ±270°
A6 ±270°
Controller
Size  410mm*307mm*235mm
Weight 12Kg
Cable length 6m
Colour  silver and red
Protocol Ethernet,Modbus-RTU/TCP
Power 100-240V/AC,50-60HZ
Protection rating IP44
I/O port 16 in/16 out
Teach pendant                                               MT(PAD/Mobile)APP
Size  355mm*235mm*54mm
Weight 1.8Kg
Screen 12 inch Resistive LCD touch screen
Cable length 6m
Protection rating IP54
Colour silver and red
Detailed Images

cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and placecobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place

cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and placecobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and placecobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place

cobot 6 axis JAKA Ai 12 Chinese low cost robot arm for industrial pick and place
